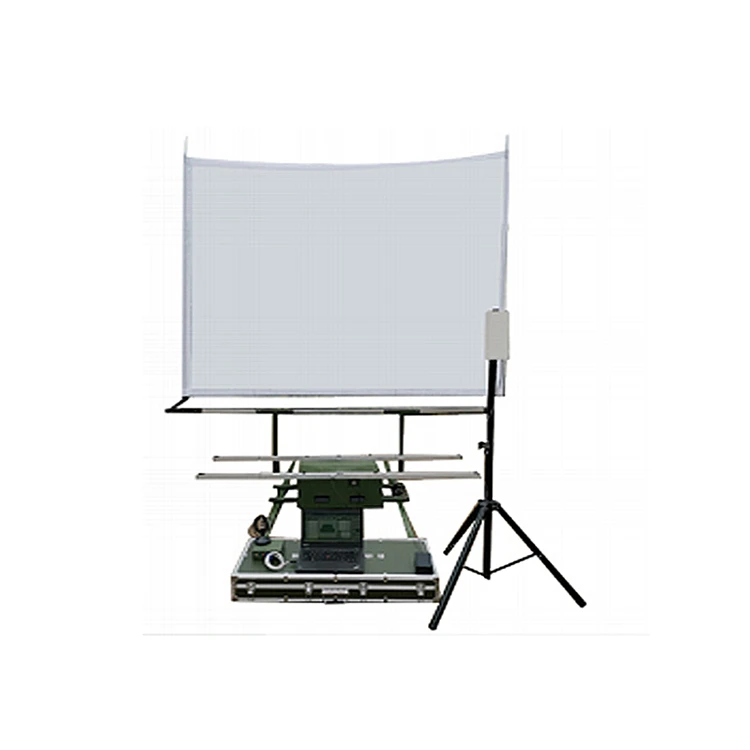

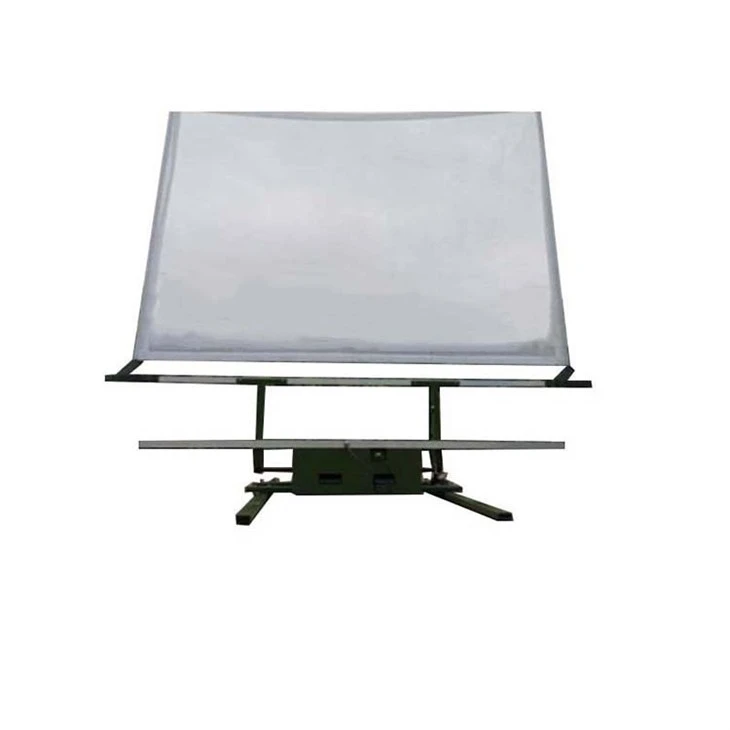

Armored Target Reporting System

The armored target reporting system supports hitting the target at 8 locations and 12 o'clock. The equipment information is sent in real-time to the central control system and distributed to the shooter display terminal. The target is reported in graphics, text, and voice, with real-time statistics, calculation, and storage of results.

1. It is compatible with ordinary target equipment, economical, and convenient to use.

2. Adapted target types: stationary target, bunker target, machine gun target, rocket launcher target, recoilless gun target, head target, and frontal tank, frontal infantry vehicle, frontal armored vehicle and other shooting target types at a distance of 400 meters.

3. Applicable bullet diameter: 5.8mm -130mm;

4. Applicable projectile speed:>400m/s;

5. Target reporting principle: Adopting the open shock wave principle, automatically reporting targets by collecting acoustic and electrical signals;

6. Average positioning accuracy: within 5CM; Misreporting rate: ＜ 1/100;

7. Target response time: ≤ 3s;

8. The lifting time is ≤ 3 seconds, and it can be manually, timed, semi-automatic, hit reverse, timed hit reverse, automatic hit reverse, and other lifting methods.

9. Equipped with a detachable external lithium battery, normal power supply time: 8-12 hours; Operating temperature: -30 ℃ -+50 ℃; A single charge can continuously start and stop for 800 times Up.

10. Communication distance: Over 3 km in open areas;

11. Waterproof level: IPX5; Wind pressure resistance performance: Level 6;

12. Target size: not greater than 800mm * 600mm * 450mm (fixed frame 2 meters * 1 meter);

13. Target weight: not exceeding 60KG

(1) Is suitable for armored experience, coaching, and combat shooting. It provides real-time display of live ammunition shooting at various shooting distances according to military standard armored targets, and can display information such as impact point, hit, sequence, time, location, deviation, and off target. It automatically calculates shooting results, projectile dispersion, etc; Meet the needs of single unit, group, or group combat shooting, set the number, time, and display frequency of hidden targets according to the training subject standards, and set the action mode to manual, automatic, hit reverse, timed hit reverse, automatic hit reverse, and other similar practical hidden display methods to assist in completing combat shooting training.

(2) Data analysis: With the help of data analysis techniques, targeted analysis of shooting training results for "bicycles, groups, and units" can be conducted based on training conditions;

(3) Generate report: Based on the live fire shooting data analysis system, there are three types of templates: text, tables, and graphics, which automatically generate statistical and analytical results based on live fire shooting data
