24V Lifting Target

1. Control method

Wireless remote control method can be used for electric control, and LCD touch screen can be used for remote control. Remote control can achieve single machine, group, and group control.

2. Power supply method

DC 24V mobile power supply.

3. Other

Power on for remote control detection, status display, remote control code display, fault indicator light alarm.

1. Product Structure

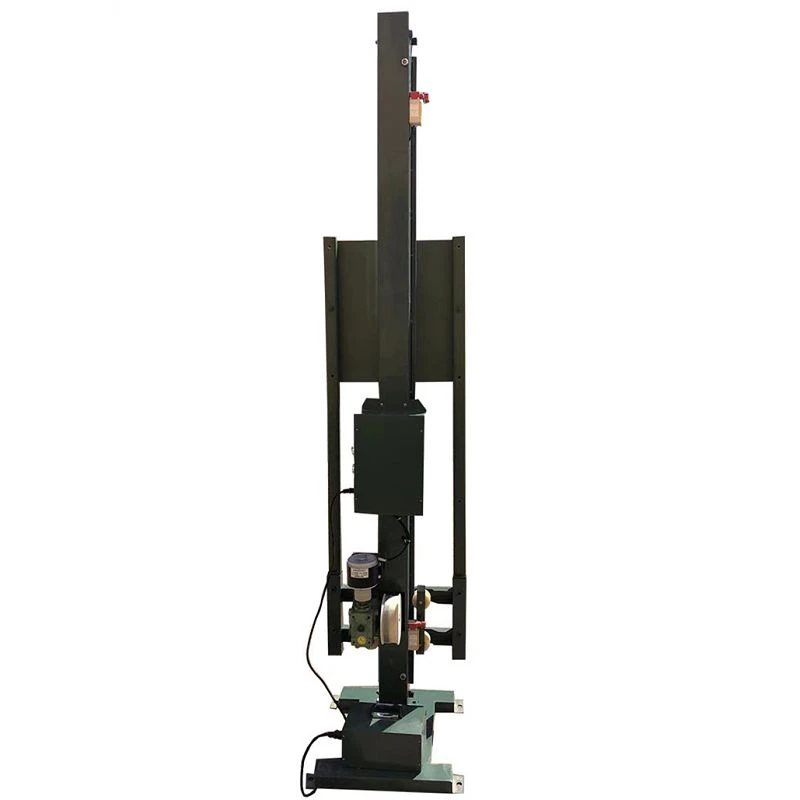

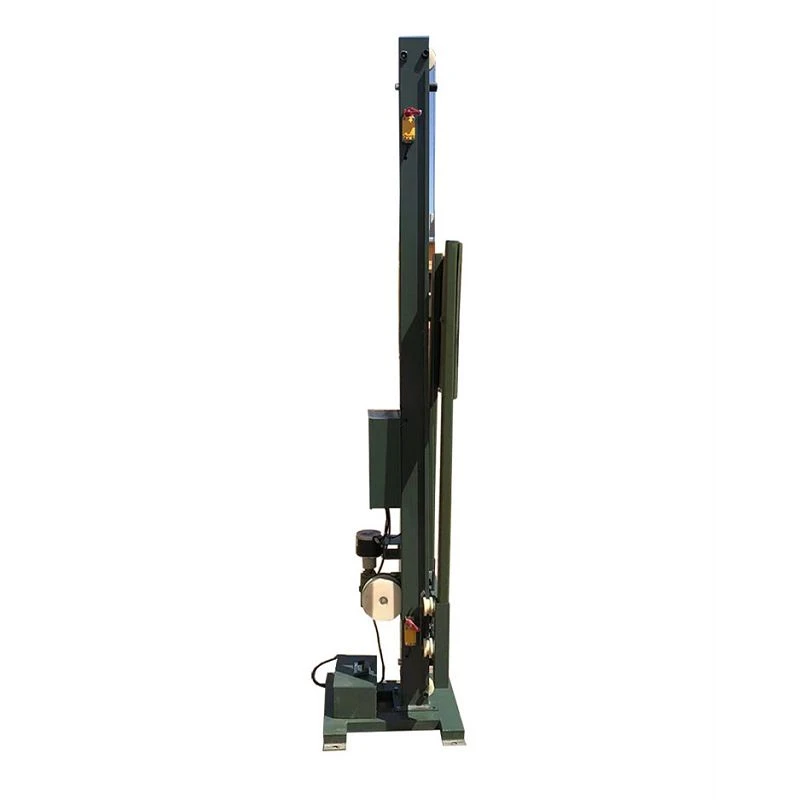

The target aircraft is composed of a base, pillars, and a target frame, and the target aircraft body is designed to be enclosed as a whole.

2. Product dimensions. Length ≤ 500mm, width ≤ 500mm, height ≤ 2400mm.

3. Motor requirements:

The motor adopts DC 24V, with a power of 300W, 2800 rpm, a working current of 10A, and a starting current of 20A.

4. Hidden time

Multiple options can be preset for remote control mode target formation, display time of each target, and shooting interval time at different distances, making it convenient for training selection. The hidden time is ≤ 1.5s, and the hidden interval and number of times can be set as needed.

Using an embedded microcontroller computer controller to achieve control of the entire system. Applying database technology to achieve automatic storage, statistical analysis, and other processing of training results; Arrange, set, and combine according to the requirements of the training subjects; Real time display of shooting hit time; It can achieve voice target reporting, automatically save grades, and be queried at any time. This system consists of a computer wired control system and a wireless remote control system, which has advantages such as anti-interference, reliable performance, and easy operation.
