Tracked Motion Target

The tracked motion target consists of a tracked vehicle body main body, a 90 degree hidden mechanism, an obstacle avoidance mechanism, etc. Using wireless remote control, it can achieve two operating modes: automatic and manual. In automatic mode, the target vehicle moves freely and can automatically avoid obstacles

Send Inquiry

Product Introduction

1, Performance characteristics

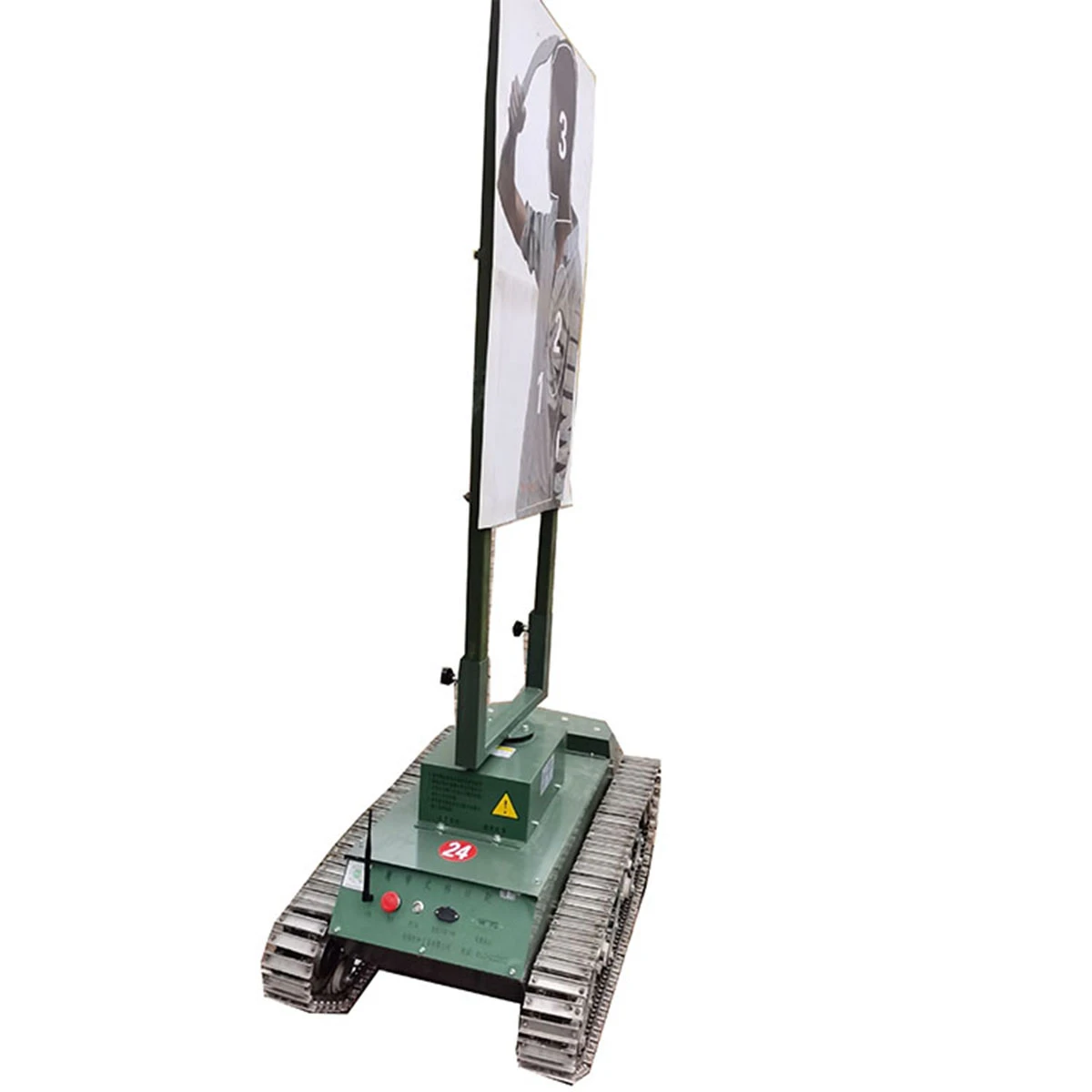

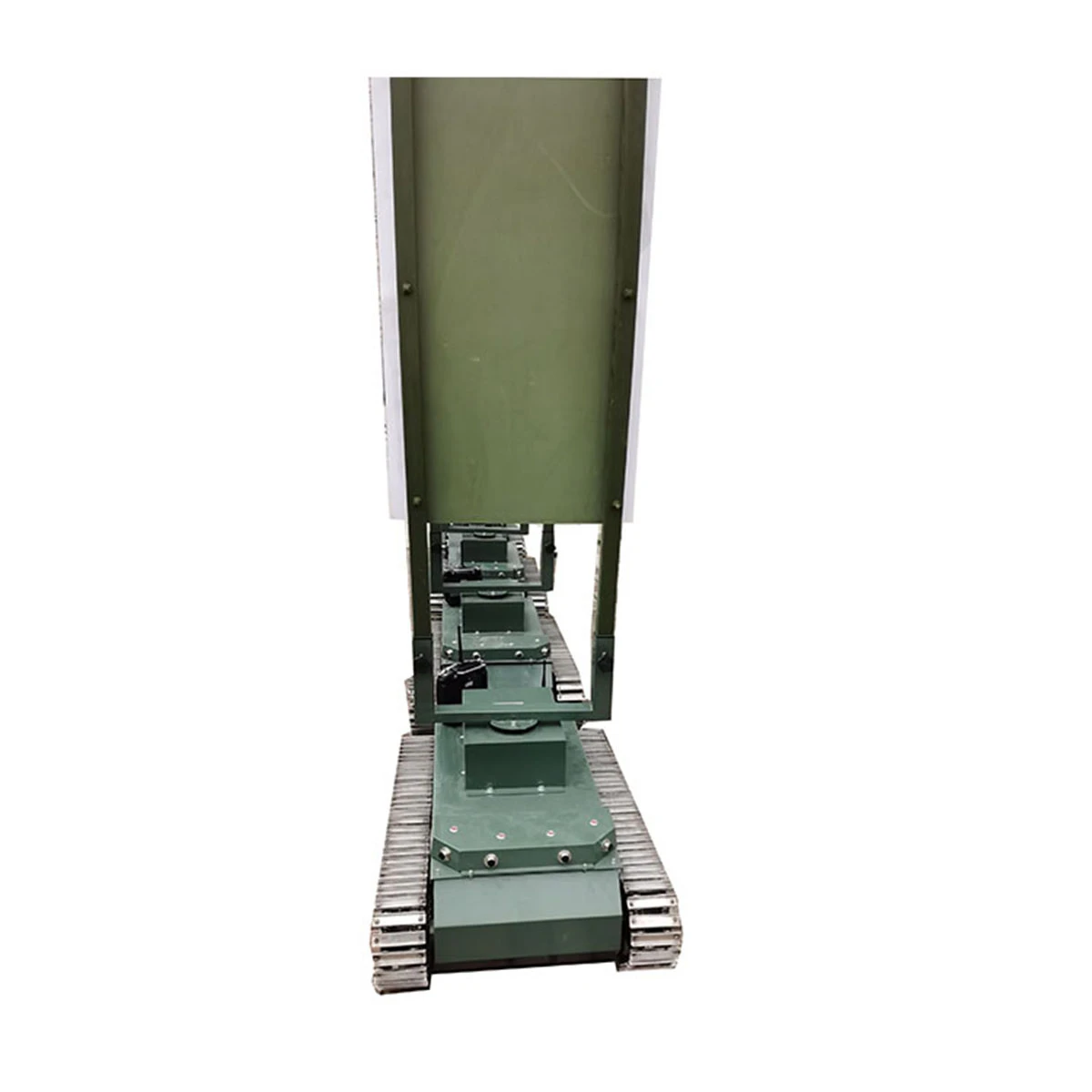

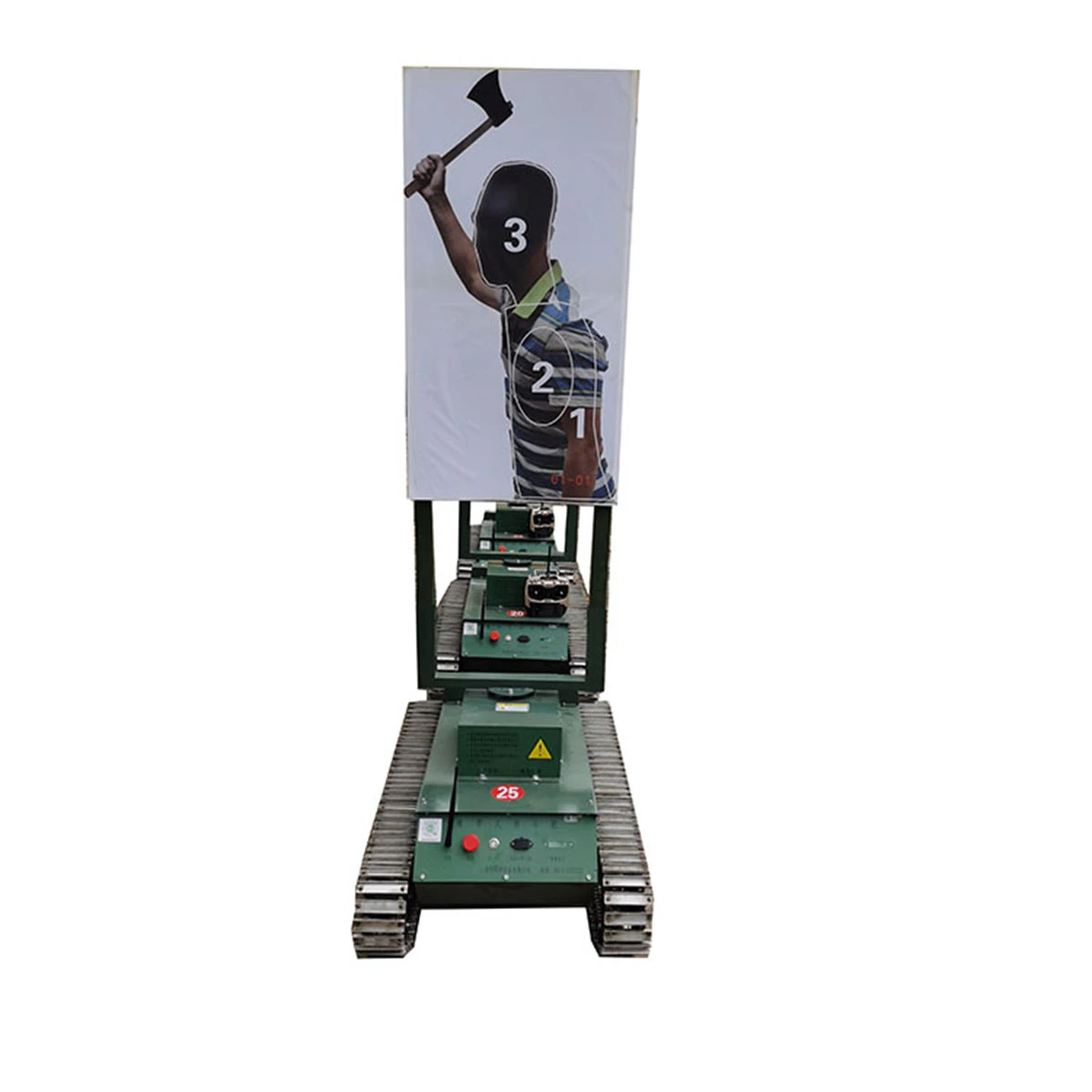

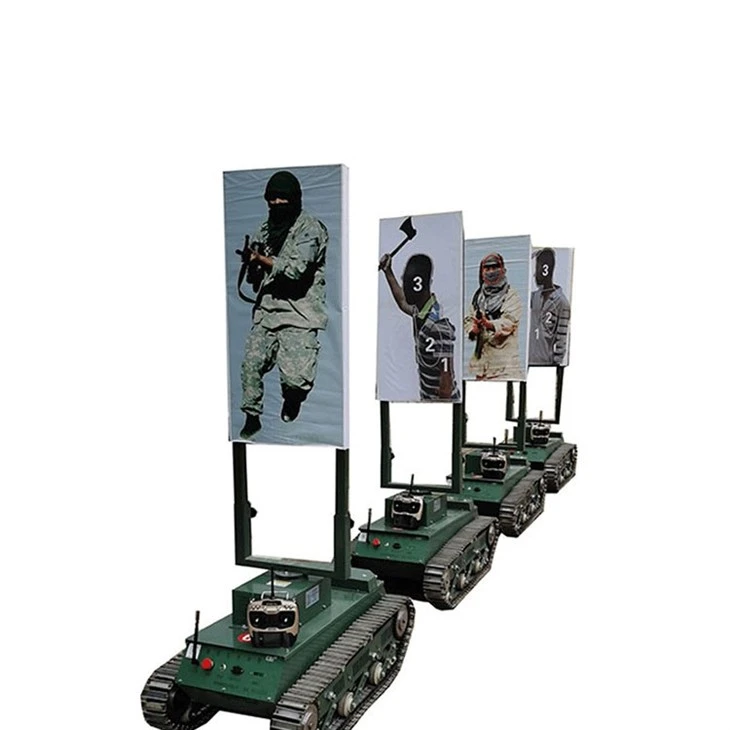

The wireless tracked mobile target vehicle consists of a tracked body main unit, a 90 degree hidden mechanism, and an obstacle avoidance mechanism. Adopting wireless remote control, it can achieve automatic and manual operation modes. In automatic mode, the target vehicle moves freely and can automatically avoid obstacles; In manual mode, speed, direction, and other controls are achieved through the remote control. The automatic and manual modes can be freely switched by the remote control. The remote control adopts the navigation mode remote control, which is flexible and convenient to operate. It can randomly control the speed and direction of the target drone according to training requirements, and can also control the target to perform irregular movements such as lifting and falling, thus meeting training requirements and improving the shooting training level of shooters.

2, Specification parameters

1. Control method

Adopting wireless remote control and hybrid dual spread spectrum metal of DSSS and FHSS, achieving a combination of interference avoidance and anti-interference. The transmission frequency adopts the 2.4GHz ISM band. The mode switching, speed adjustment, and display/hide control of the target vehicle are all remotely controlled through a remote control.

2. Power supply mode

Built in DC 48V power supply.

3. Power output

DC 48V deceleration motor. The electrical control components are internally sealed to meet waterproof design requirements.

4. Performance requirements

4.1 Product Structure

The sports target drone mainly consists of a target vehicle, which can be equipped with a lifting box (or rotating target box) target frame, and the tracks are made of stainless steel material. The overall body of the target vehicle is designed to be sealed.

4.2 Product Dimensions

Target vehicle body ≤ 1100 × 700 × 750mm (length, width, height)

4.3 Hidden time

The target is displayed once when it is inverted 90 degrees, and the display time is ≤ 1 second per time.

4.4 Load capacity ≥ 50kg.

4.5 Movement speed

The target vehicle's motion speed is ≤ 3m/s-5m/s, and the direction and speed of motion can be adjusted freely
