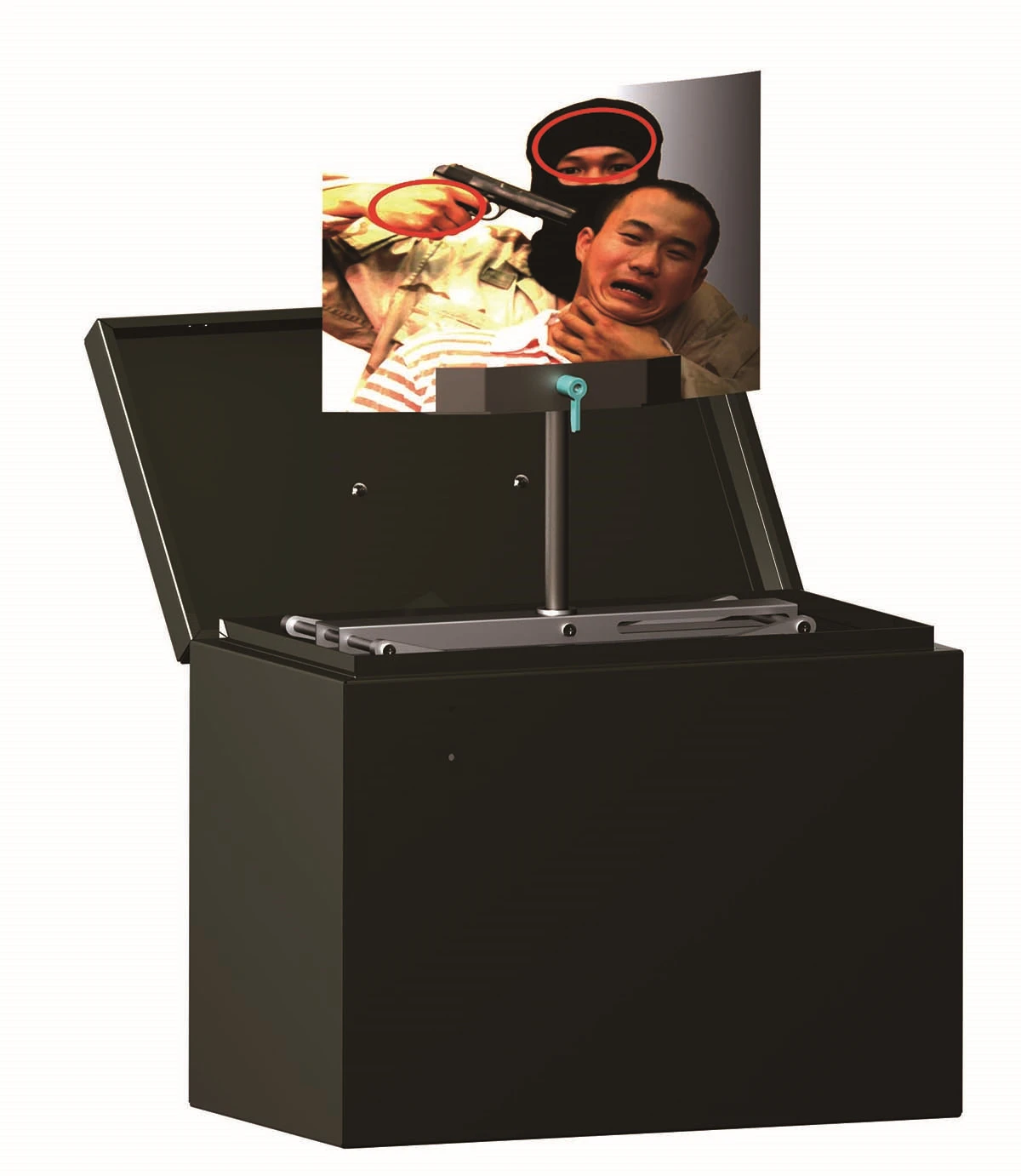

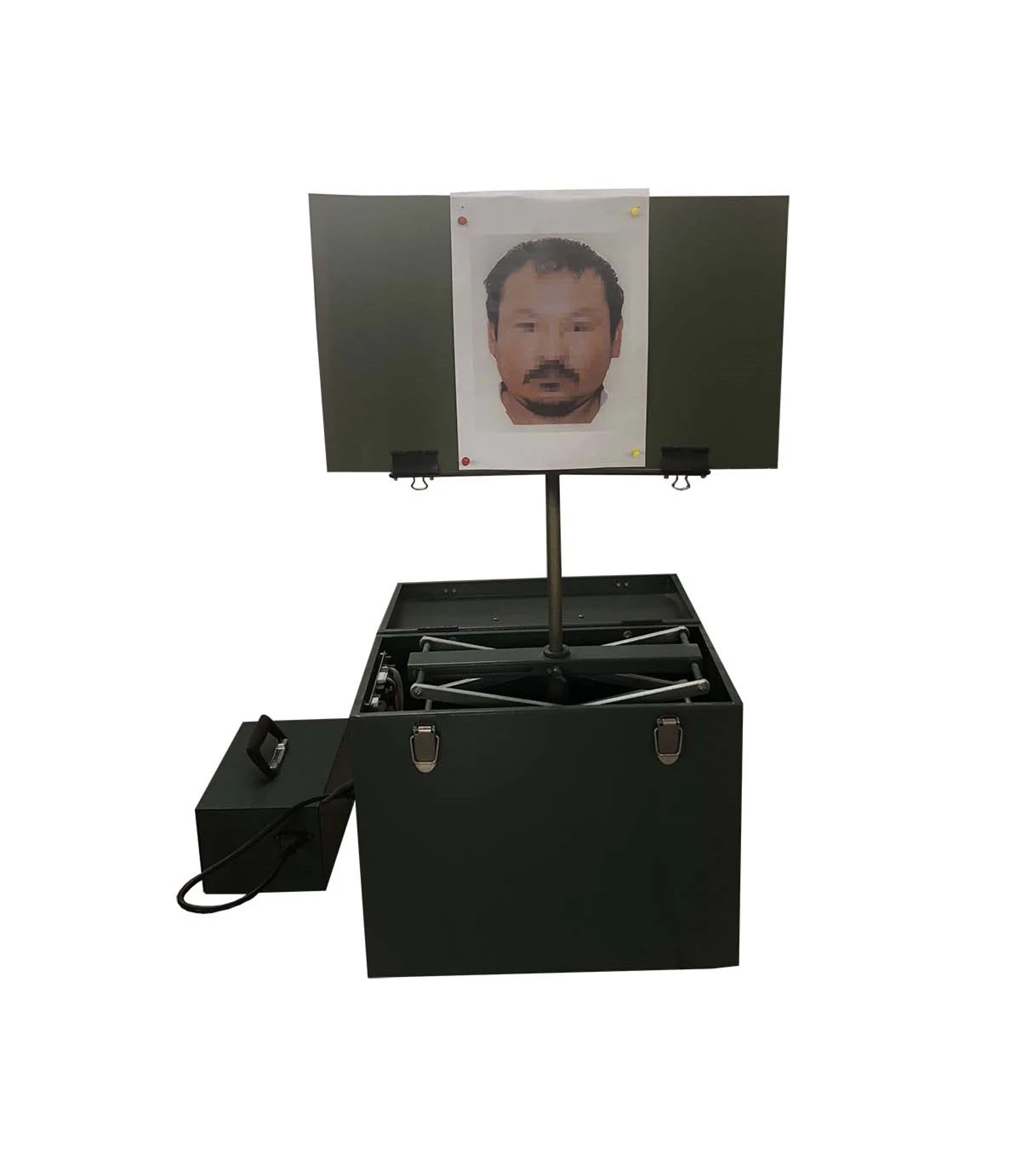

Portable Lifting Target Machine

This target aircraft has a small volume and light weight, making it easy to place and hide the body. The vertical lifting speed is fast, making it very suitable for indoor and outdoor training. The corners of the field, low walls, and other shelters are placed behind them to simulate the sudden appearance of enemies, thereby training shooters to quickly and accurately shoot targets. Charging only requires charging the mobile power pack.

1. Control method. Wireless remote control and local touch screen control methods can be adopted, with reserved wired control interfaces for remote control. The remote control can be directly controlled wirelessly or wired, and can achieve single machine, group, and group control.

2. Power supply method. AC/DC dual power supply mode, AC 220V

3. Others. Power on self-test, battery level display, touch screen display and control, simple and intuitive operation.

1. Product structure: The portable lifting target is composed of a box, a scissor landing gear, a connecting rod drive, a deceleration motor, a battery pack, and electrical components.

2. General requirements: The main metal components of the portable lifting target machine should have sufficient rigidity. The box of the lifting target machine is made of GB2.0mm steel plate bent and pressed, and the landing gear is made of GB20mm x 10mm or GB14mm x 9mm square steel, GB Φ 10mm or GB Φ Made of 8mm round steel.

3. Basic parameters: Target length 420mm, width 240mm, height 350mm, with a maximum deviation of ± 2mm.
