Laterally Moving Target

The lateral moving target is used to ensure shooting training for moving targets. The target vehicle is a one master and two slaves, with a conductive automatic target reporting method, and can be connected to the intelligent range management system for unified control.

1. Control method

Adopting wireless remote control. It is possible to set motion speed, individual concealment, simultaneous concealment, irregular concealment, concealment time, concealment frequency, etc.

2. Power supply method

DC 24V power supply, AC 220V charging.

3. Power output

DC 24V deceleration motor. The electrical control components are internally sealed and meet the waterproof design requirements.

4. Others

Power on for remote control detection, status display, battery level indicator, remote control code display, fault indicator light alarm.

5. Product structure

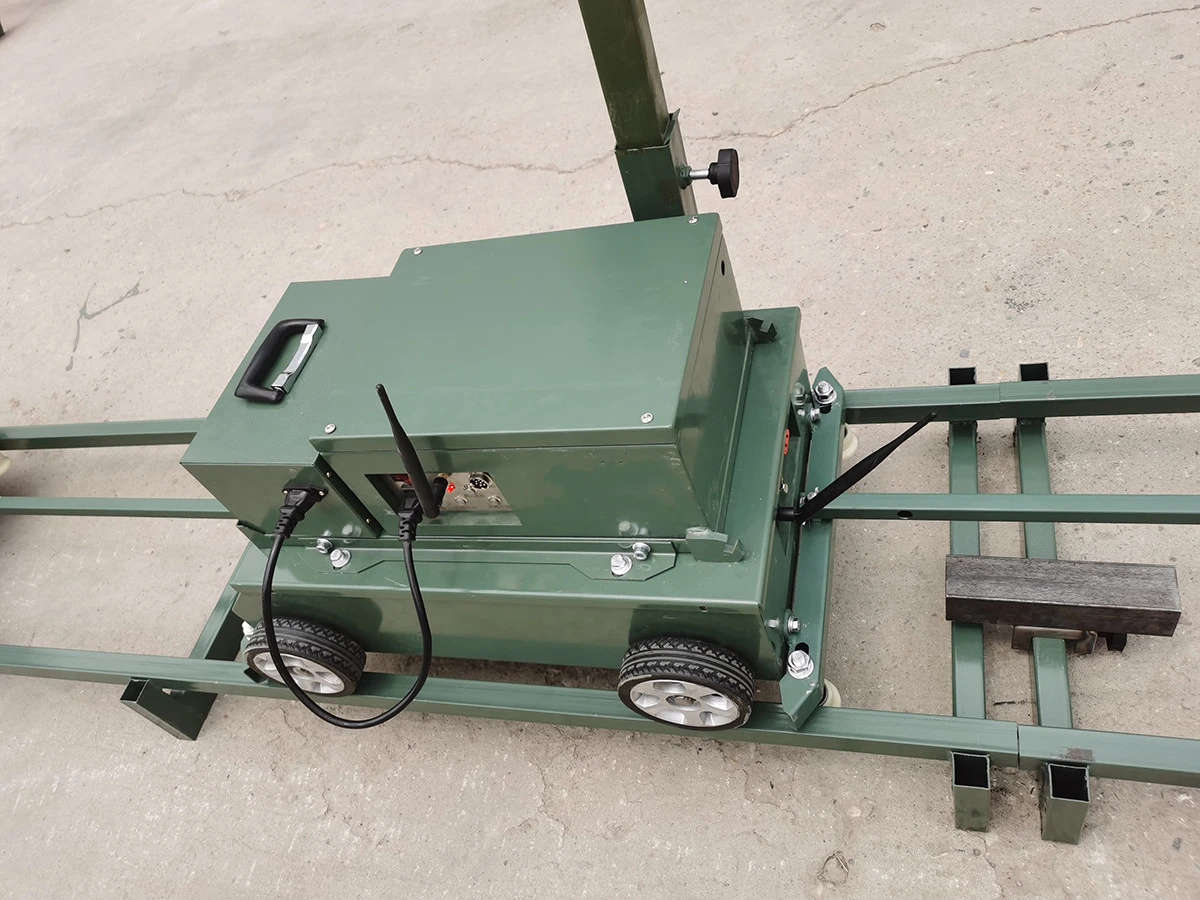

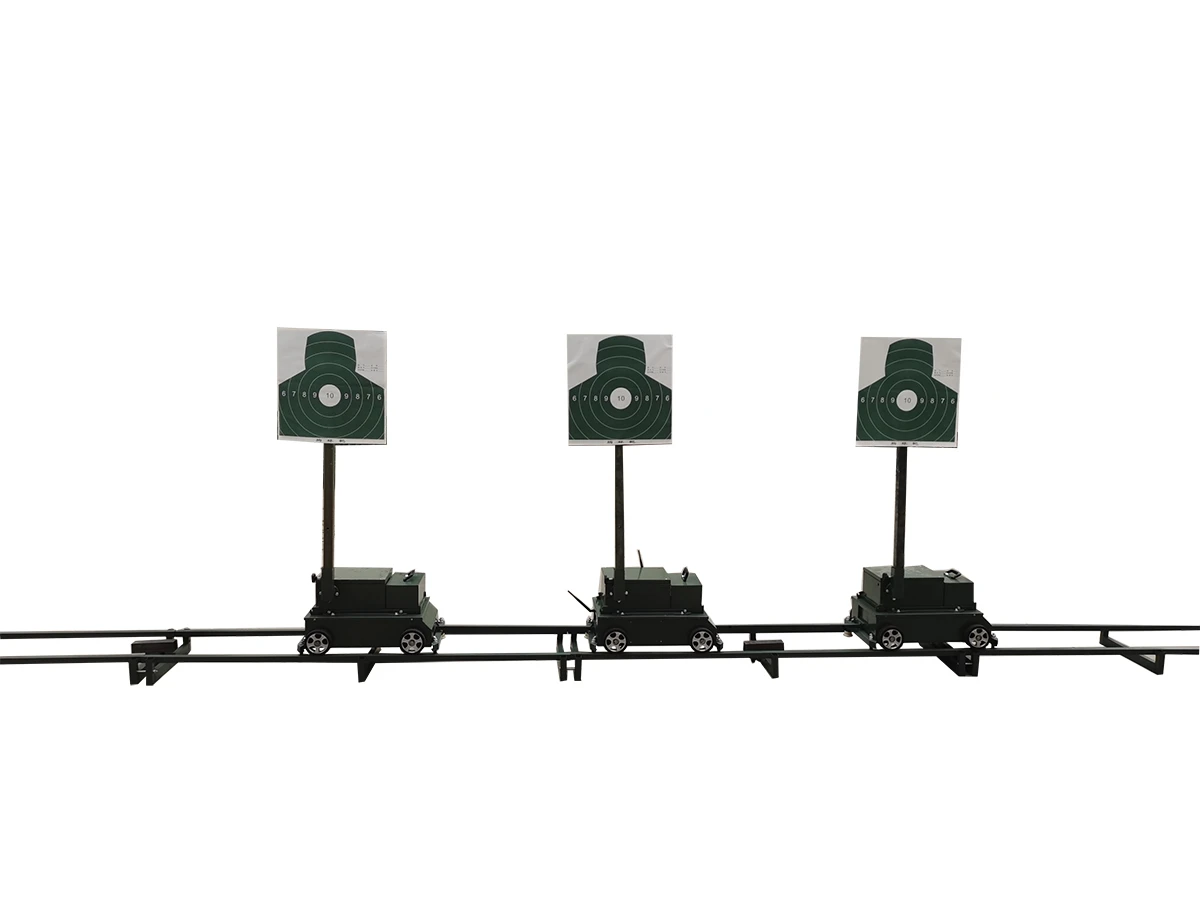

Mainly composed of active towing target vehicles, trailers, lifting and tilting target aircraft, and tracks. The target vehicle body is designed to be enclosed as a whole. Can carry 1 main target vehicle and 2 secondary target vehicles (including individual takeoff and landing targets)

6. Product dimensions

Target vehicle size: ≤ 650 × 450 × 250mm (length, width, height), and lifting and tilting target machine box size: ≤ 550 × 300 × 200mm. Install a target plate with a height of no less than 1.7 meters
