Shock Wave Lifting Target

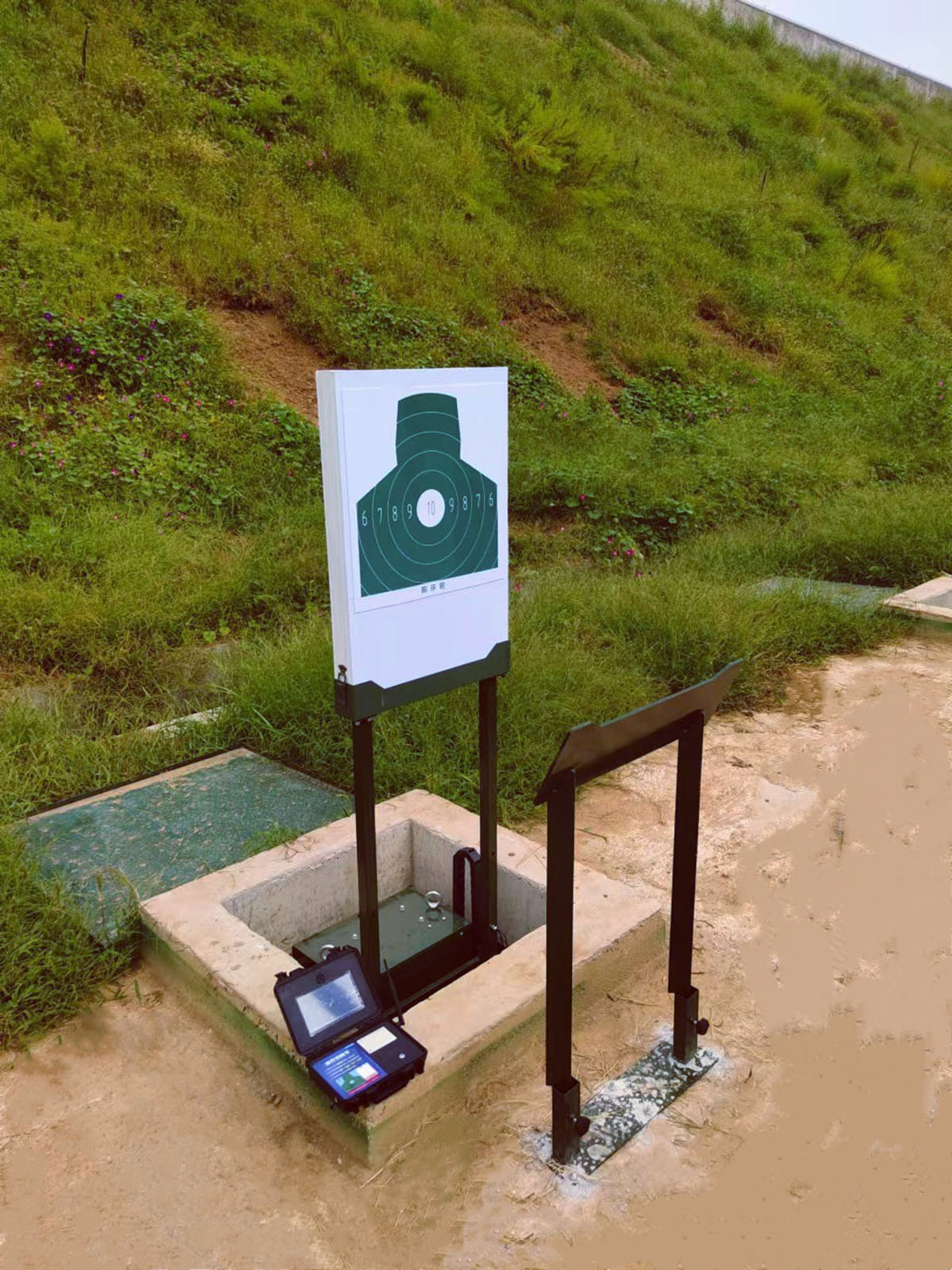

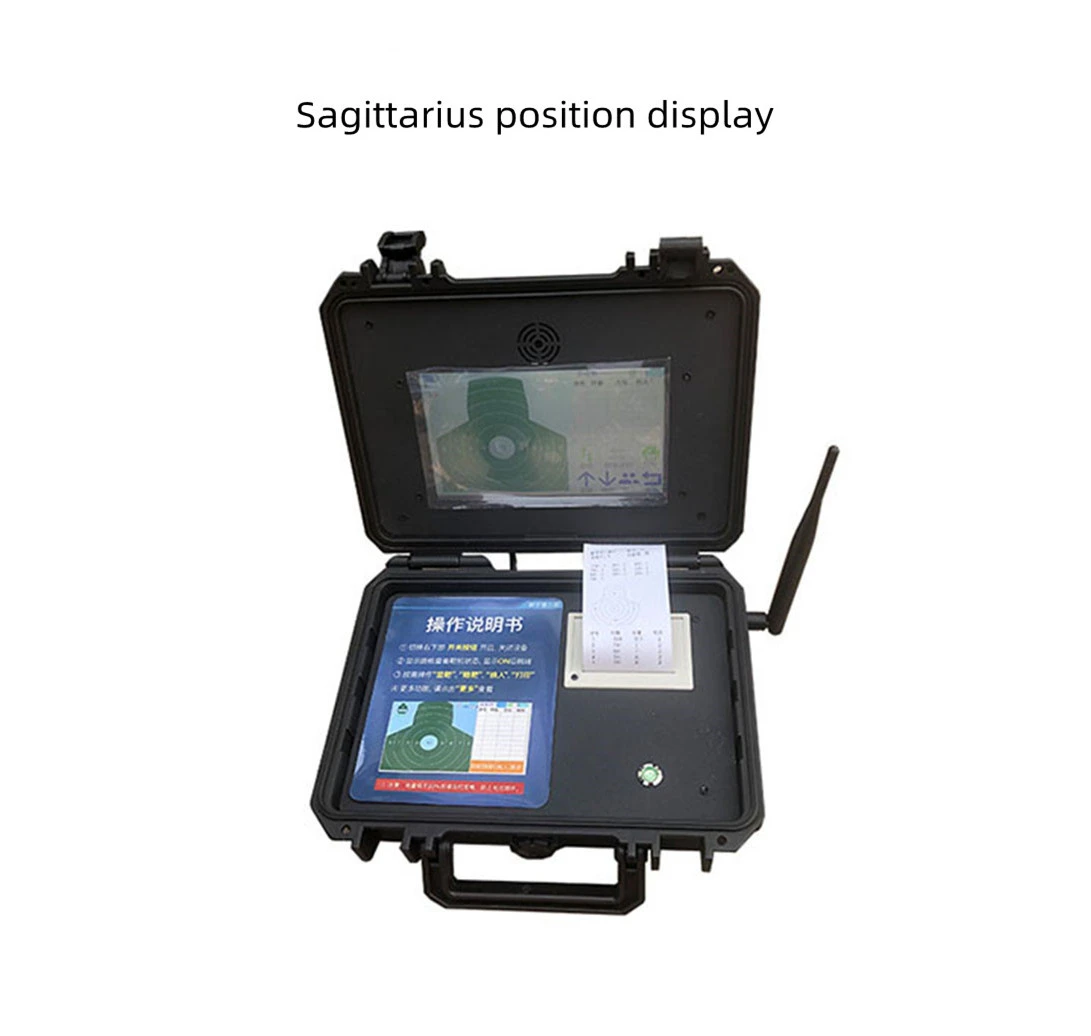

Shock wave lifting target is a light weapon live fire training equipment that integrates lifting and precise target reporting functions. Key technologies such as acoustic and electrical positioning, wireless signal transmission, and target paper calibration were mainly utilized to achieve accurate target reporting of target shooting results.

Elevating target machine is a fixed installation of elevating target machine, which is controlled by single machine, whole machine, sequence, random, and grouping. The accuracy of target reporting is not more than 3mm, and it supports various target types such as chest ring target and half body target. It mainly guarantees the training of basic and applied shooting courses for individual soldiers. It is a device developed for the training of hidden target shooting and other subjects.

The target aircraft can be equipped with shock wave targets for precision shooting training, as well as ordinary targets for basic training functions.

Support electric control and manual mechanical control modes. Among them, wired, wireless remote control and local button control can be used for modulation electric control, and remote control can realize single machine, group and group control. During power outage training, adjust the manual mechanical mode and manually pull the control handle to achieve the lifting function.

AC (380V) power supply method.

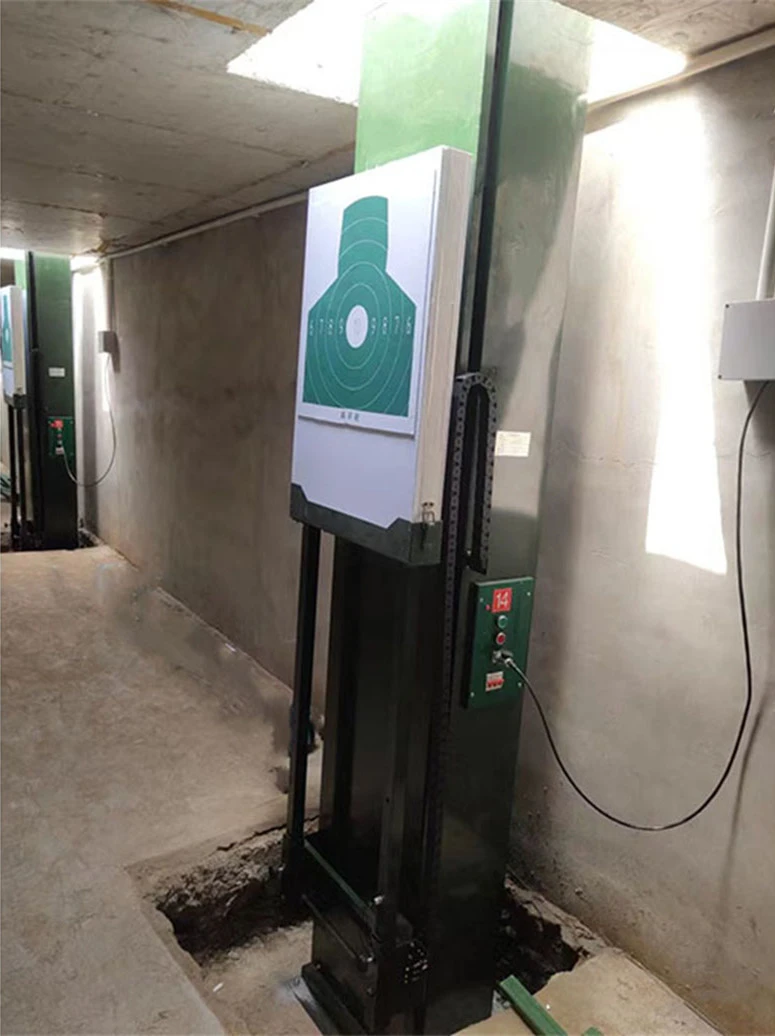

Each lifting target machine is mainly composed of a main body, a base, a track, a chain wheel drive, a target frame, a reduction motor, and an electrical control box. The target machine casing is designed to be enclosed as a whole.

1. The target frame of the target machine is double-sided, which can achieve alternating hidden display on both sides of the target and improve work efficiency.

2. The base of the target aircraft adopts a seamless welding of 12 # channel steel wrapped with steel plates, and the base is connected to the ground with expansion screws, ensuring solid and stable installation.

3. Three horizontal motors: AC 380V, deceleration motor, and motor mounted on top meet the design requirements of moisture-proof, rainproof, and immersion proof. The distance between the electrical control box and the base is ≥ 500mm, which meets the waterproof design requirements.

Target aircraft body (box) length ≤ 730mm, width ≤ 600mm, height ≤ 2500
