Obstacle Training Field

Composed of cross stakes, low walls, high board platforms, horizontal ladders, single plank bridges, high walls, low pile networks, and turning flags.

Send Inquiry

Product Introduction

Composed of cross stakes, low walls, high board platforms, horizontal ladders, single plank bridges, high walls, low pile networks, and turning flags.

1. Cross pile: composed of 5 sets of cross piles with a diameter of ∅ 300mm and a height of 100mm above the ground. The cross pile is welded with a 3mm thick steel plate and wrapped with a 5mm thick rubber anti slip layer. The product is sturdy and durable, with balanced landing and good slip resistance. The connection chain is firmly connected to the cross pile, and the surface of the cross pile is flat without cracks or sharp corners. The connection chain is firmly connected to the cross pile, and the surface of the cross pile is flat without cracks or sharp corners.

2. Low wall: 2000mm wide, 1100mm high (from the ground), 200mm thick. The height can be adjusted by 200mm, and the spacing can be adjusted by 100mm. The opening is 500mm wide and 400mm high, with the lower edge of the opening 600mm above the ground and the left edge 200mm to the left of the low wall. The baffle is spliced with 40mm thick solid wood. Use 200 x 200mm solid wood along the crossbeam on the low wall. The lower side of the base is fixed with channel steel, all coated with glue, with a length of 1500mm, a width of 100mm, and a height of 50mm, δ≥ 3.5mm.

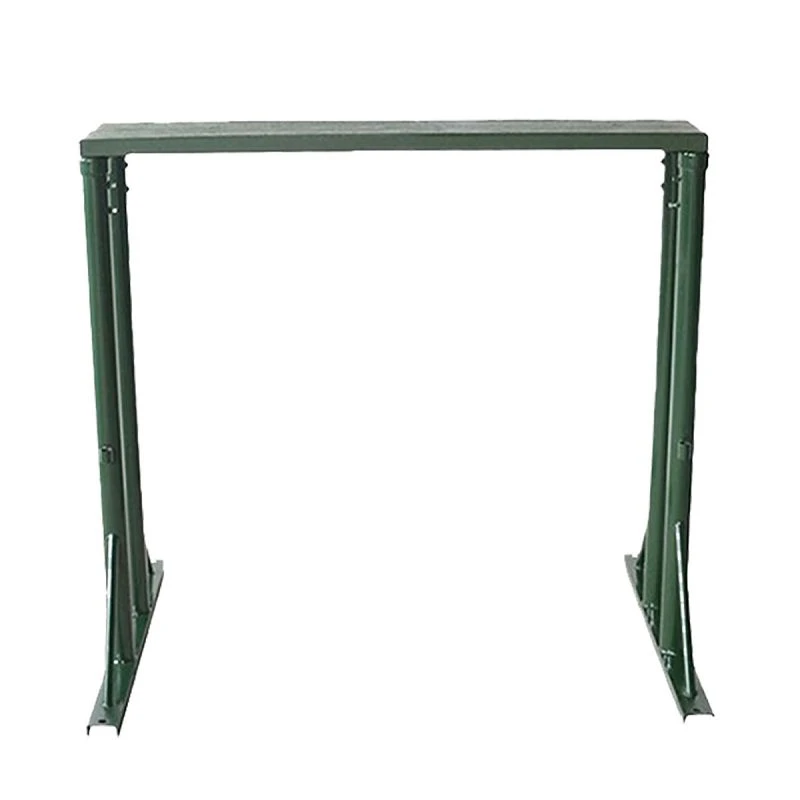

3. High board diving platform: The high board is 2000mm long, 500mm wide, and 1800mm high. The high platform has a height of 1500mm, with a length and width of 1000mm each. The low platform has a height, length, and width of 1000mm each. The spacing between high boards, high platforms, and low platforms is 1000mm. Two Q235 round pipes are used to connect the high board, high platform, and low platform in sequence, with a diameter of ∅ ≥ 25mm, δ≥ 2.5mm. The board surface is spliced with 50mm thick solid wood, wrapped with Q235 angle steel, with a cross-sectional size of 50mm x 50mm. The columns on both sides are made of ∅ 90mm steel pipes, with a height of 1800mm, a length of 100mm, and a width of 50mm. The base is made of 100mm * 50mm * 3.5mm channel steel. The top of the columns is welded to the angle steel on the board surface and fixed with screws. The screw diameter is 12mm and the length is 30mm. High platform: The frame is welded with Q235 angle steel, with a cross-sectional size of 50mm x 50mm. The countertop and surrounding areas are spliced with 35mm thick solid wood and fixed to the frame with screws, with a diameter of 12mm and a length of 50mm. There are 4 handles on each side of the high platform, made of stainless steel material. Low platform: The frame is welded with Q235 angle steel, with a cross-sectional size of 50mm x 50mm. The countertop and surrounding areas are spliced with 35mm thick solid wood and fixed to the frame with screws, M12 * 50. Two handles are equipped on both sides of the high platform, made of stainless steel material.

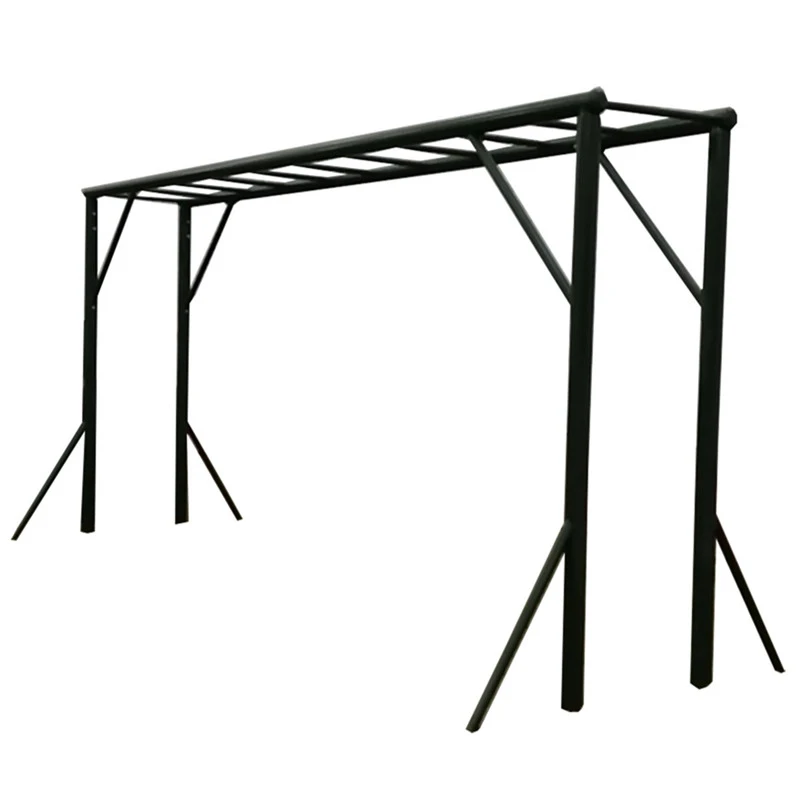

4. Horizontal ladder: The ladder has a height of 2400mm, a length of 5100mm, and a width of 590mm. The distance between the ladder and the lower platform is 300mm, and the span of the crossbar is 500mm. The columns and longitudinal bars are made of Q235 steel pipes with a diameter of ∅ 90mm,. Welding of inner sleeve with a diameter of ∅ ≥ 80mm and a length of ≥ 110mm for longitudinal elbow,. Insert the inner sleeve into the column steel pipe and fix it with screws, with a length of 20mm and a diameter of ∅ 12mm. The horizontal bar is made of Q235 steel pipe, with a diameter of ∅ ≥ 32mm and a wall thickness of ≥ 2.5mm, which is welded to the vertical bar. The base is fixed with Q235 channel steel, with a length of 3000mm, width of 100mm, height of 50mm, and thickness of 3.5mm. The base and column are fixed with screws.

5. Single wooden bridge: The bridge body is 5000mm long, 1300mm high, with a plane width of 100mm, and the inclined plate is 2000mm long and 200mm wide. The spacing between columns is 1000-1300mm. The bridge body is made of round wood, with a diameter of ∅ ≥ 200mm. The diagonal board is made of solid wood, δ≥ 100mm, the column is made of Q235 steel pipe with a diameter of 114mm. Weld the iron plate at the top and fix it with screws to the bridge body. The base is made of channel steel, with a length of 1200mm, a width of 100mm, and a height of 50mm. It is fixed to the column with screws.

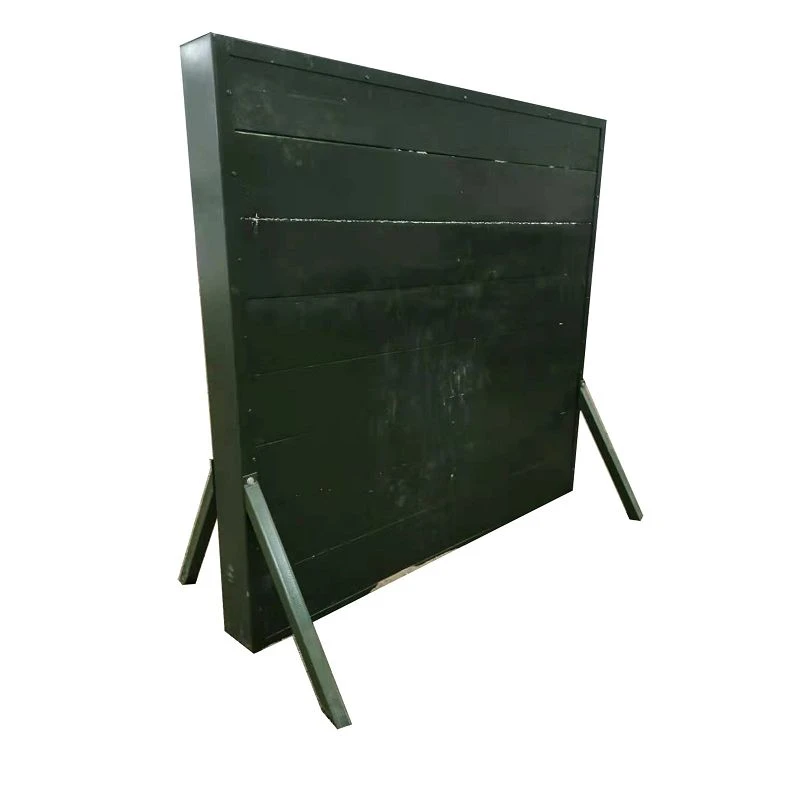

6. High wall: 2000mm high and 2000mm wide each, δ≥ 200mm, using baffle δ≥ 40mm solid wood splicing. The columns and beams on both sides are made of solid wood with a size of 200 x 200mm. The base is fixed with channel steel, with a length of 1200mm, a width of 120mm, a height of 50mm, and a thickness of 3.5mm. Fix the column with screws, with a length of 30mm and a diameter of ∅ 12mm. The fixed points are firmly connected, and the base is firmly grounded. No cracks or sharp corners.

7. Low pile network: Overall length 5000mm, width 2000mm, height 500mm (adjustable from 400mm to 600mm). The column is made of Q235 steel pipe, with a height diameter of ≥ 42mm and a wall thickness of ≥ 2.5mm. The base is made of Q235 channel steel, with a length of 5000mm and a cross-sectional size of 80 × 45 × 5mm. It is fixed to the column with screws, with a length of 30mm and M12mm * 30mm. Each barbed wire is 2000mm long, with 6 wires pulled straight between two symmetrical pillars to form a pile network. The fixing part is made of Q235 channel steel, with a length of 500mm and a cross-sectional size of 80 × 45 × 5. It is fixed to both ends of the base with screws, M12 * 30. The upper weight block should be ≥ 10kg. The fixed points are firmly connected, and the base is firmly grounded. No cracks.

8. Turning flag: Adopting a ∅ 50mm round tube with a height of 1500mm, the base and upright pole are detachable. Flag size 300 * 400mm. (Technical requirements: All welding parts shall be polished and polished; paint surface: anti rust paint shall be applied at the bottom, and the surface paint shall be smooth and beautiful; hard miscellaneous wood shall be used for wood; hard flagpoles shall be used for turning flags.)
